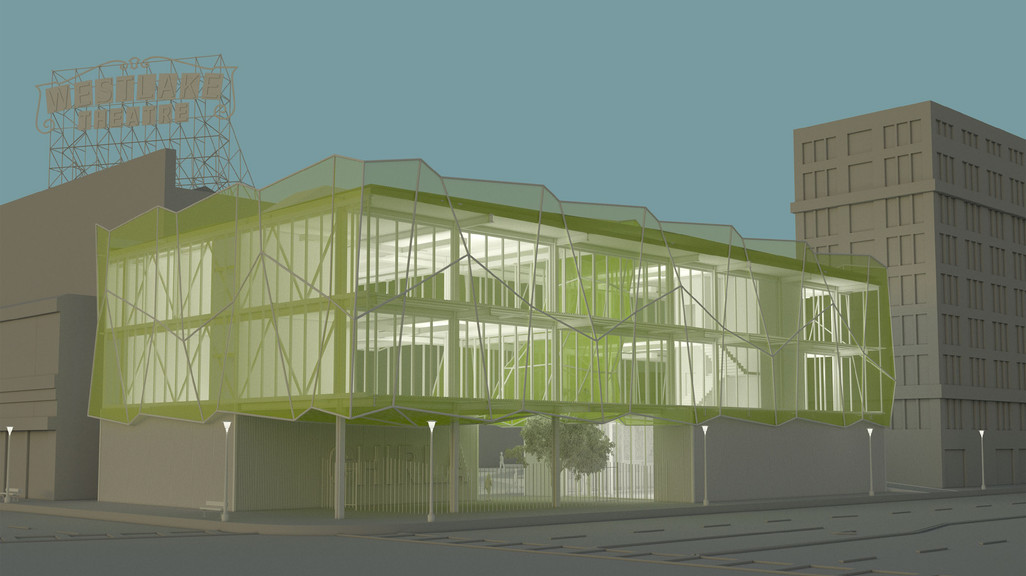

Rendered perspective drawing of project expressing the street corner condition at nighttime.
Work by Martha Kriley
Student Gallery M.Arch

Comprehensive Design Studio

415 Comprehensive Design Studio
2019

The Comprehensive Design Studio expands its traditional programmatic focus to a small and urban atrium building constructed of a steel-frame tectonic, albeit in ways that acknowledge steel as a supple medium capable of materializing and geometrically manifesting as form-active, vector-active, section-active, surface-active; or in a hybrid state in tandem with other materials. The studio explores how steel, in its various guises, organizes and establishes a gradient across the domains of a contemporary public urban fabric.

Related Faculty
 Mohamed Sharif, Kevin Daly, Wonne Ickx, Mark Mack
Rendered perspective drawing of project.
1
Illustrated vignette showing interior conditions of the building.
2
Illustrated vignette showing interior conditions of the building.
3
Elevation drawing with section cut through the building on the left half of the image.
4
Elevation drawing with section cut through the building on the left half of the image.
5
Plan drawings including site plan, second floor plan, and third floor plans.
6
Longitudinal section perspective drawing.
7
Courtyard perspective expressing facade system.
8
Rendered perspective of project showing corner condition.
9
Transverse section drawing at ¼” = 1’ scale.
10
lan drawings of second, third, and fourth floors drawn to 3/32” = 1’ scale.
11
Rendered elevation at ⅛” = 1’ scale.
12
Rendered vignettes of facade details.
13
Rendered perspective of project showing corner condition.
14
Photograph of physical model.
15
Photograph of physical model.
16
